Nuvospec

CTRL-ACE / NX-ACP Series

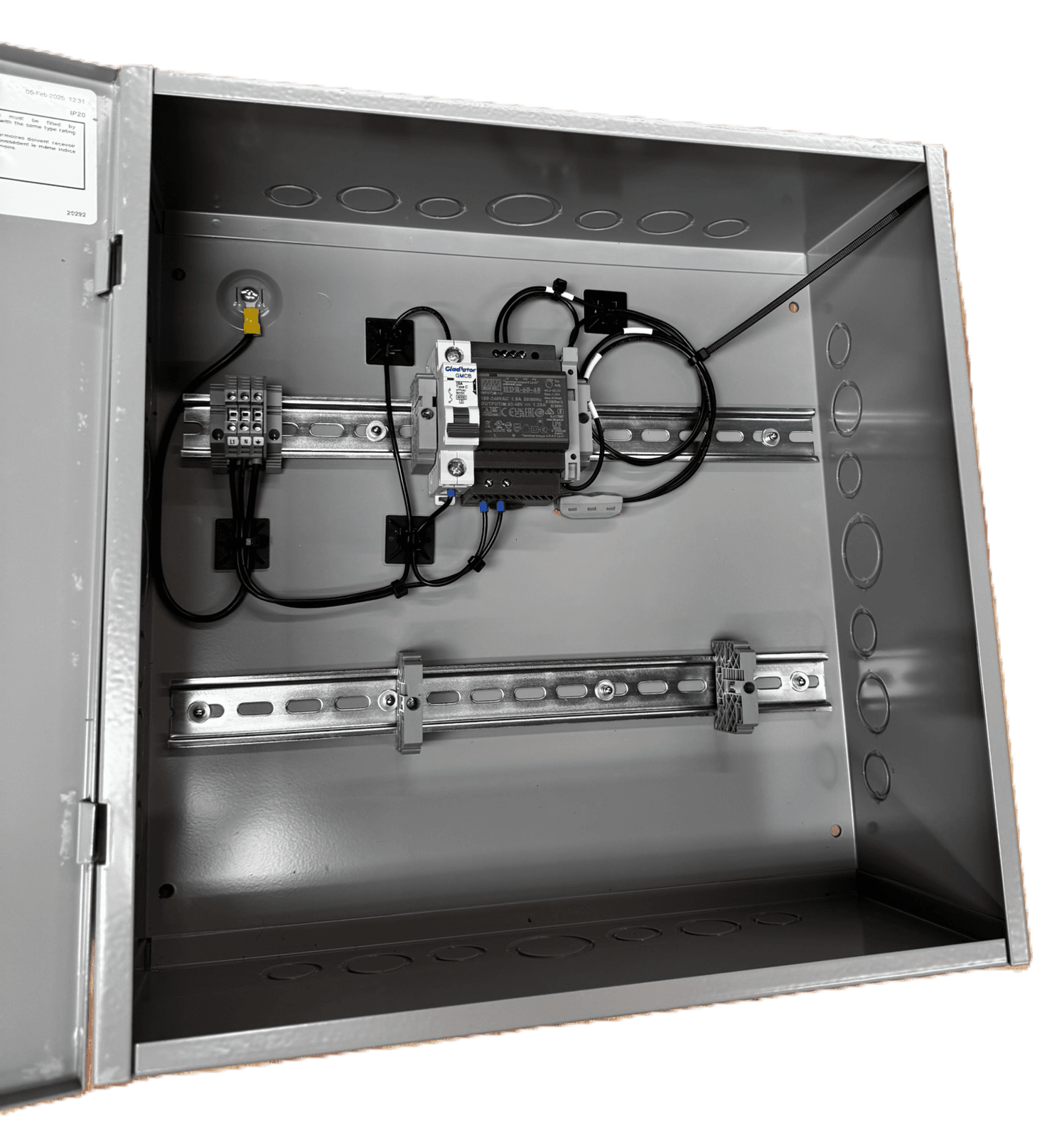

Automation Enclosures

Pre-engineered UL 508A automation control panels and enclosures with DIN rail, industrial power supply, circuit protection, and terminal blocks — ready for your automation controller.

Automation Enclosures

Key Features

  • UL 508A listed industrial control panel
  • Steel NEMA 1 enclosure with hinged door and knockouts
  • Standard 35mm DIN rail mounting brackets
  • Industrial DC power supply (24V or 48V, 60W or 120W options)
  • Supplementary protector for circuit protection and power disconnect
  • Numbered terminal blocks, pre-wired with grounding point
  • Optional Pharos LPC controller integration (NX-ACP-LPC)
  • Multiple enclosure sizes: 12×12×6 or 16×16×6 inches

Technical Specifications

Enclosure
NEMA 1, 16-gauge galvanized steel, ANSI 61 gray powder coat
Sizes
16×16×6 in or 12×12×6 in with 4 mounting through holes
Door
Hinged with ¼ turn latch or padlock hasp
Power Supply Input
120VAC (85–264VAC), 50/60Hz
DC Output
24VDC or 48VDC, 60W or 120W
Circuit Breaker
15A, 277/120VAC, 1-pole, B curve, 6kA
Terminal Blocks
24–10 AWG, 30A, 600V rated
DIN Rail
2x 12" length, 35mm, 7.5mm height plated steel
Operating Temp
0°C to 50°C
Certifications
UL508A, cUL, CE, RoHS

Ordering Information

CTRL-ACE Series:
  CTRL-ACE-NEMA1-[SIZE]-[VOLTAGE]-[POWER]
  SIZE: 161606 | 121206
  VOLTAGE: 24V | 48V
  POWER: 60W | 120W

NX-ACP Series:
  NX-ACP-120 — 120VAC input
  NX-ACP-277 — 277VAC input
  NX-ACP-LPC — with Pharos LPC controller

Example: CTRL-ACE-NEMA1-161606-48V-120W

Typical Applications

  • Pharos LPC lighting control processor installation
  • Building automation controller mounting
  • HVAC integration panel
  • Any application needing a pre-built enclosure with DIN rail, PSU, and terminal blocks
