CTRL-PNL Series
Lighting Contactor Panels

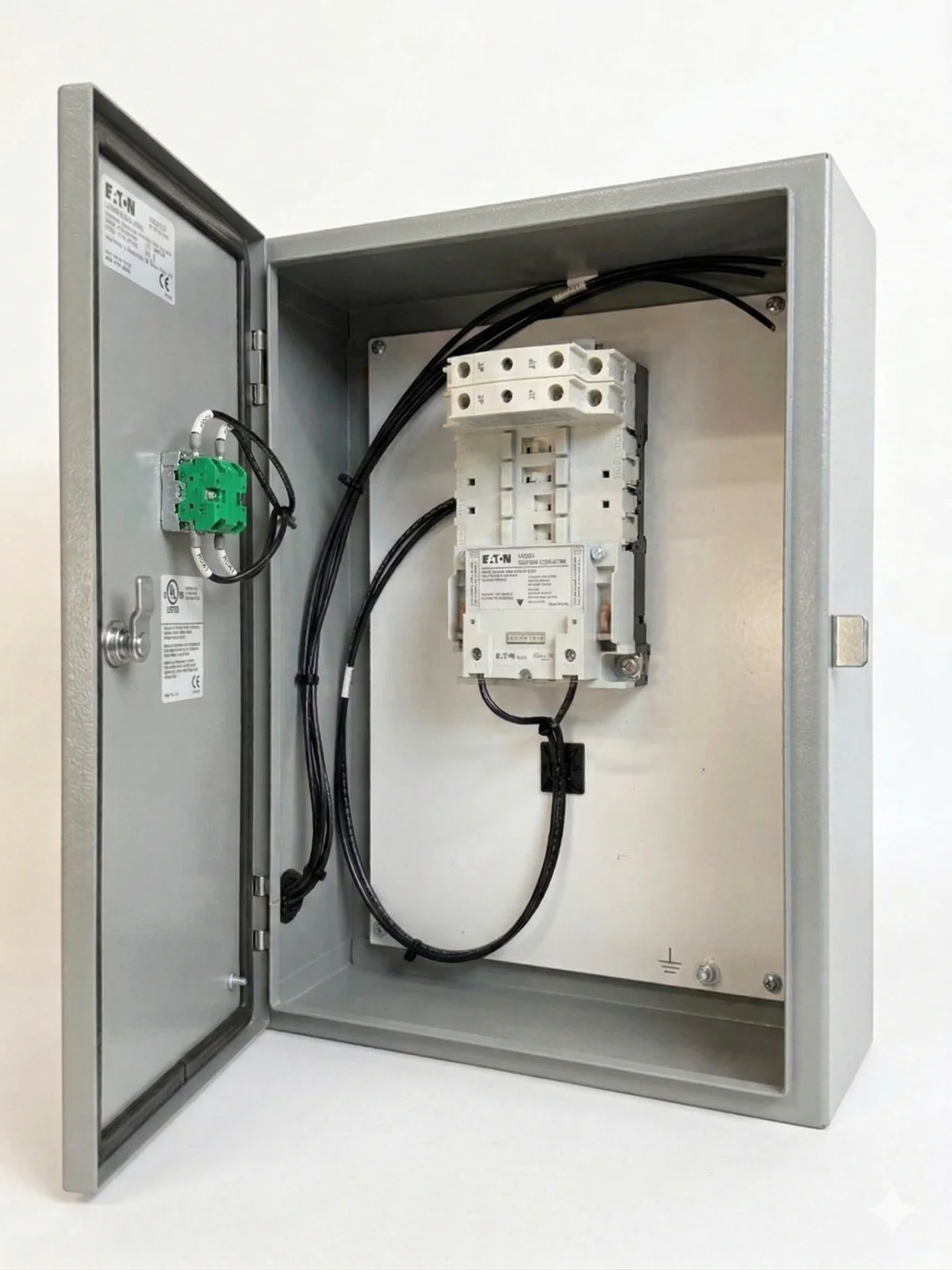

Premium pre-assembled lighting contactor panel with astronomical timeclock, 2–24 poles, NEMA 1 or NEMA 3R, 120/277V, electrically held 30A contactors. Plug-and-play.
Key Features
- Plug & play, pre-assembled enclosure — no field wiring of components
- Programmable digital 24-hour 7-day astronomical timeclock with capacitor backup
- Electrically held 120/277V 30A rated contactors (2-pole blocks)
- Up to 24 poles (NEMA 1 only for 24-pole)
- Steel lockable NEMA 1 or NEMA 3R enclosure
- Screw terminal connections accept 14–8 AWG, 75°C copper
- Optional photocell, HOA switch, 2-hour override, BACnet module
- All components UL listed; UL 508A listed panel shop
Technical Specifications
| Specification | Details |
|---|---|
| Enclosure | NEMA 1 (indoor) or NEMA 3R (outdoor) |
| Enclosure Rating | UL-50 Type 3R / IEC 60529 IP24 |
| Dimensions (std) | 16 x 12 x 6 in HxWxD (20 x 16 x 6 for 24-pole) |
| Material | Galvanized steel, ANSI 61 gray powder coat |
| Contactor Rating | 30A @ 600VAC, electrically held |
| Poles | 2, 4, 6, 8, 10, 12, or 24 |
| Coil Voltage | 120VAC standard (277, 208, 24VAC available) |
| Wire Size | Power: 14–8 AWG | Coil: 18–14 AWG |
| Timeclock | 7-day astronomical, auto DST, capacitor backup |
| Operating Temp | -40°F to +131°F (-40°C to +55°C) |
| Certifications | UL 508A, UL listed components |
| Warranty | 3-year limited |
Ordering Information
CTRL-PNL-[POLES]-[COIL]-[NEMA]-[HOA]-[OPTIONS] POLES: 02, 04, 06, 08, 10, 12, 24 COIL: (blank)=120V | 277 | 208 | 24 NEMA: NEMA1 | NEMA3R HOA: (blank)=none | HOA OPTIONS: TMCLK, TMCLKAPP, PHCL, 2HR, BACNET Example: CTRL-PNL-12-277-NEMA3R-HOA-TMCLK-PHCL
Typical Applications
- Commercial office lighting circuits
- Retail and grocery store lighting zones
- Parking garage and exterior lighting
- Industrial facility lighting control
- Any project requiring scheduled or photocell-based on/off switching of 30A circuits
Downloads
Related Products
Get a Quote
Contact us for pricing and lead times on Lighting Contactor Panels.
Request a QuoteFind a RepWhy Nuvospec
- Pre-assembled = labor savings — contractor unboxes and connects
- Astronomical timeclock automatically adjusts for sunrise/sunset year-round
- 24-pole option handles large facilities in one panel
- 277V support works on standard commercial branch circuits
- UL 508A certified — required by many specs and AHJs
