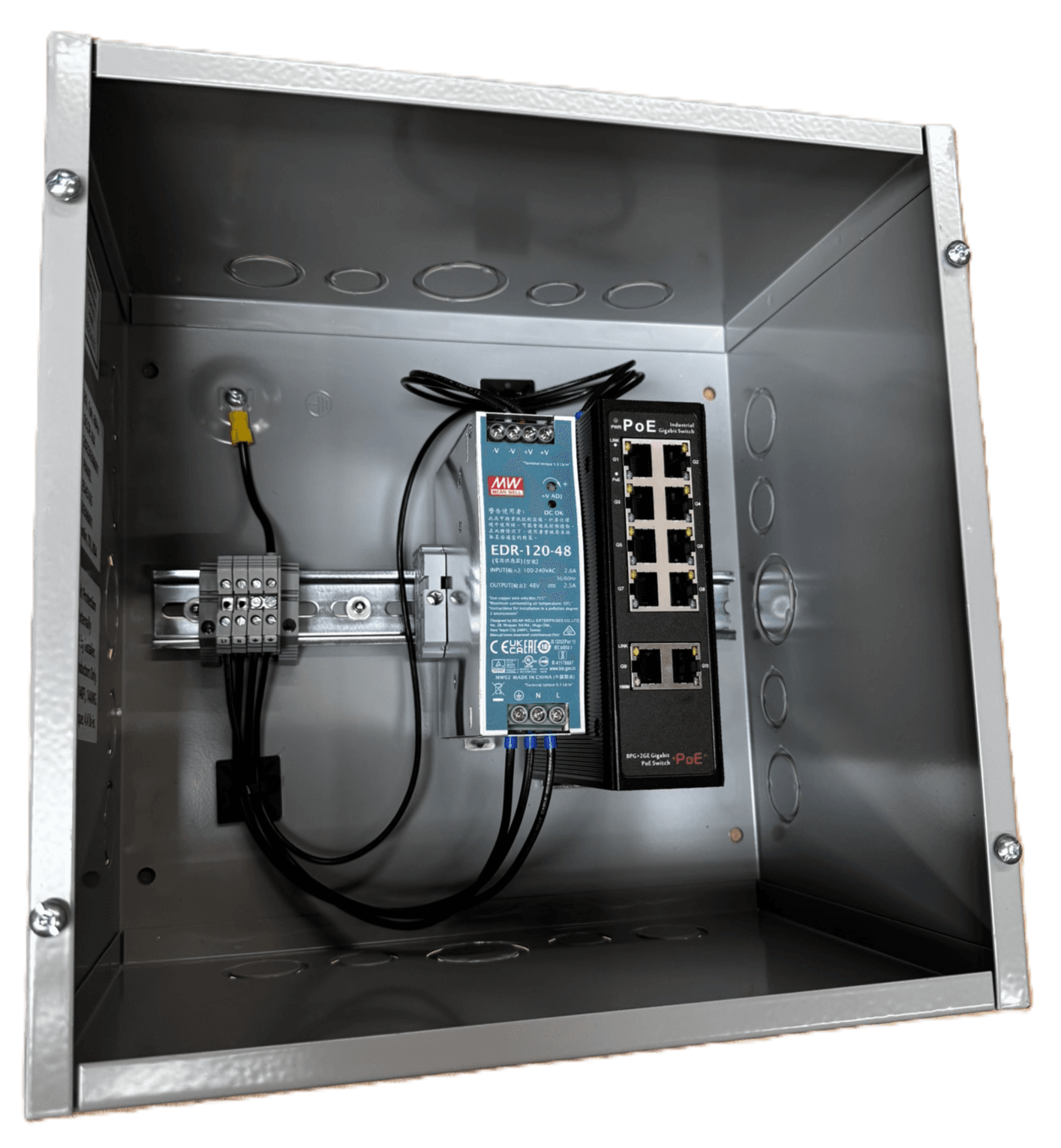

ECO-08POE / CTRL-PNL-08POE Series
PoE Switch Panels
Pre-assembled contractor-friendly 8-port PoE switch panel with 120W capacity, industrial power supply, NEMA 1 or NEMA 3R — available in ECO Grade and SPEC Grade configurations for powering IP lighting controls and building automation devices.
Key Features
- Plug & play, pre-assembled ethernet network solution
- 10/100M industrial 8-port PoE switch, up to 120W total device load
- 8 ports supporting IEEE 802.3af/at (up to 30W per port)
- Includes 120W industrial 48VDC power supply
- 3 terminal blocks for AC supply connection
- Steel NEMA 1 or NEMA 3R enclosure
- ECO Grade and SPEC Grade configurations available
- Operating temp: -40°F to +131°F
- All components UL listed
Technical Specifications
| Specification | Details |
|---|---|
| Switch Ports | 8 x 10/100Base-TX PoE + 2 x Data-only RJ45 |
| PoE Standard | IEEE 802.3af/at — 30W max per port |
| Total PoE Budget | 120W (with included PSU) |
| Power Supply | 48VDC, 120W, 120–240VAC input |
| Enclosure | 12 x 12 x 6 in, NEMA 1 or NEMA 3R |
| Material | Galvanized steel, ANSI 61 gray powder coat |
| Operating Temp | -40°C to +75°C | 5–90% RH |
| Compliance | FCC Part 15 Class B, RoHS |
| Certifications | All components UL listed |
Ordering Information
ECO Grade PoE Switch Panels: ECO-08POE-NEMA1-120 — 8-Port PoE Switch, Indoor (NEMA 1), 120V ECO-08POE-NEMA3R-120 — 8-Port PoE Switch, Outdoor (NEMA 3R), 120V SPEC Grade PoE Switch Panels: CTRL-PNL-08POE-NEMA1-120 — 8-Port PoE Switch, Indoor (NEMA 1), 120V CTRL-PNL-08POE-NEMA3R-120 — 8-Port PoE Switch, Outdoor (NEMA 3R), 120V
Typical Applications
- Powering IP lighting touchscreens (Pharos, DMX gateways)
- Access control card readers and door controllers
- IP cameras (up to 8 devices @ 30W each)
- Building automation IoT sensors and gateways
- Small office/retail network infrastructure
Related Products
Get a Quote
Contact us for pricing and lead times on PoE Switch Panels.
Request a QuoteFind a RepWhy Nuvospec
- All-in-one: switch + power supply + enclosure pre-assembled — saves hours
- Outdoor rated NEMA 3R option for rooftop or mechanical room installs
- Wide temp range: -40°F works in unconditioned spaces
- UL listed components pass inspections without drama
