CTRL-ECO Series
ECO Contactor Panels
Cost-effective pre-assembled lighting relay panel with 7-day timeclock, 3–12 poles (in multiples of 3), NEMA 1 or NEMA 3R, 120V standard.
Key Features
- Plug & play, pre-assembled — budget-friendly alternative to CTRL-PNL
- Programmable digital 24-hour 7-day timeclock with capacitor backup

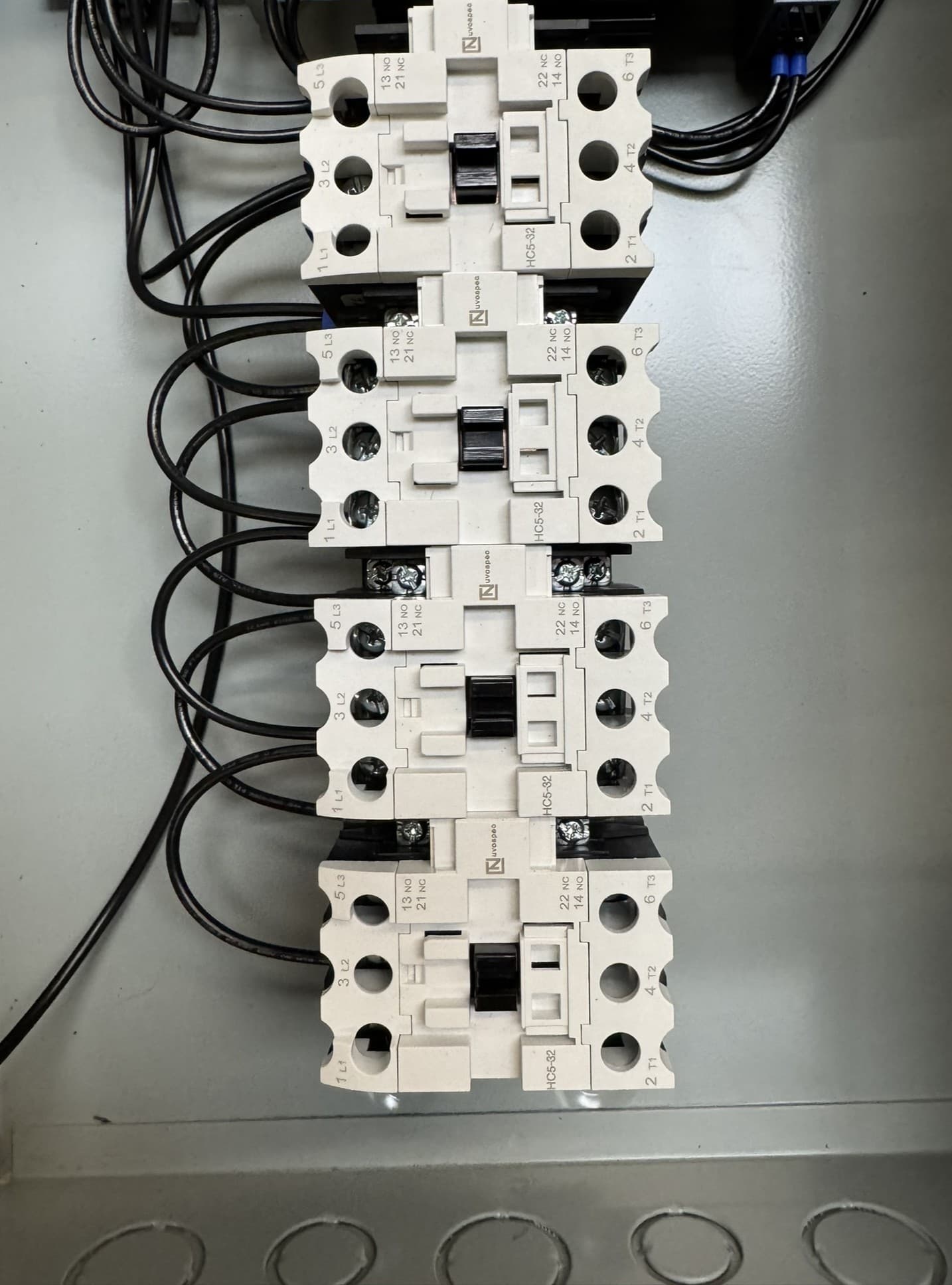

- Electrically held 120V 30A rated 3-pole contactor blocks (3, 6, 9, or 12 poles)
- Steel lockable NEMA 1 or NEMA 3R enclosure
- HOA switch, 2-hour override, photocell available as options
- Option for Altronix PT724A timeclock (annual event scheduling, battery backup, LCD)
- All components UL listed
Technical Specifications
| Specification | Details |
|---|---|
| Enclosure | NEMA 1 (indoor) or NEMA 3R (outdoor) |
| Dimensions | 16 x 12 x 6 in HxWxD |
| Material | Galvanized steel, ANSI 61 gray powder coat |
| Contactor Rating | 30A @ 600VAC, electrically held |
| Poles | 3, 6, 9, or 12 (multiples of 3) |
| Coil Voltage | 120VAC standard (277VAC available) |
| Wire Size | Power: 14–8 AWG | Coil: 18–14 AWG |
| Timeclock | Standard 7-day or Altronix PT724A (annual events) |
| Operating Temp | -40°F to +131°F (-40°C to +55°C) |
| Certifications | UL listed components |
Ordering Information
CTRL-ECO-[POLES]-[NEMA]-[OPTIONS] POLES: 03POLE | 06POLE | 09POLE | 12POLE NEMA: NEMA1 | NEMA3R OPTIONS: HOA, 2HR, TMCLK, PT724A, PHCL, BACNET, 277 Example: CTRL-ECO-06POLE-NEMA3R-HOA-TMCLK-PHCL
Typical Applications
- Small commercial buildings with budget constraints
- Tenant improvement projects
- Simple on/off lighting control with timeclock
- Replacement panels in existing facilities
Downloads
Related Products
Get a Quote
Contact us for pricing and lead times on ECO Contactor Panels.
Request a QuoteFind a RepWhy Nuvospec
- Lower entry price — right-sized for small to mid projects
- Max 12 poles is sufficient for most TI work
- Same plug-and-play convenience and UL listing as premium series
- Altronix PT724A option gives annual event scheduling at lower cost
