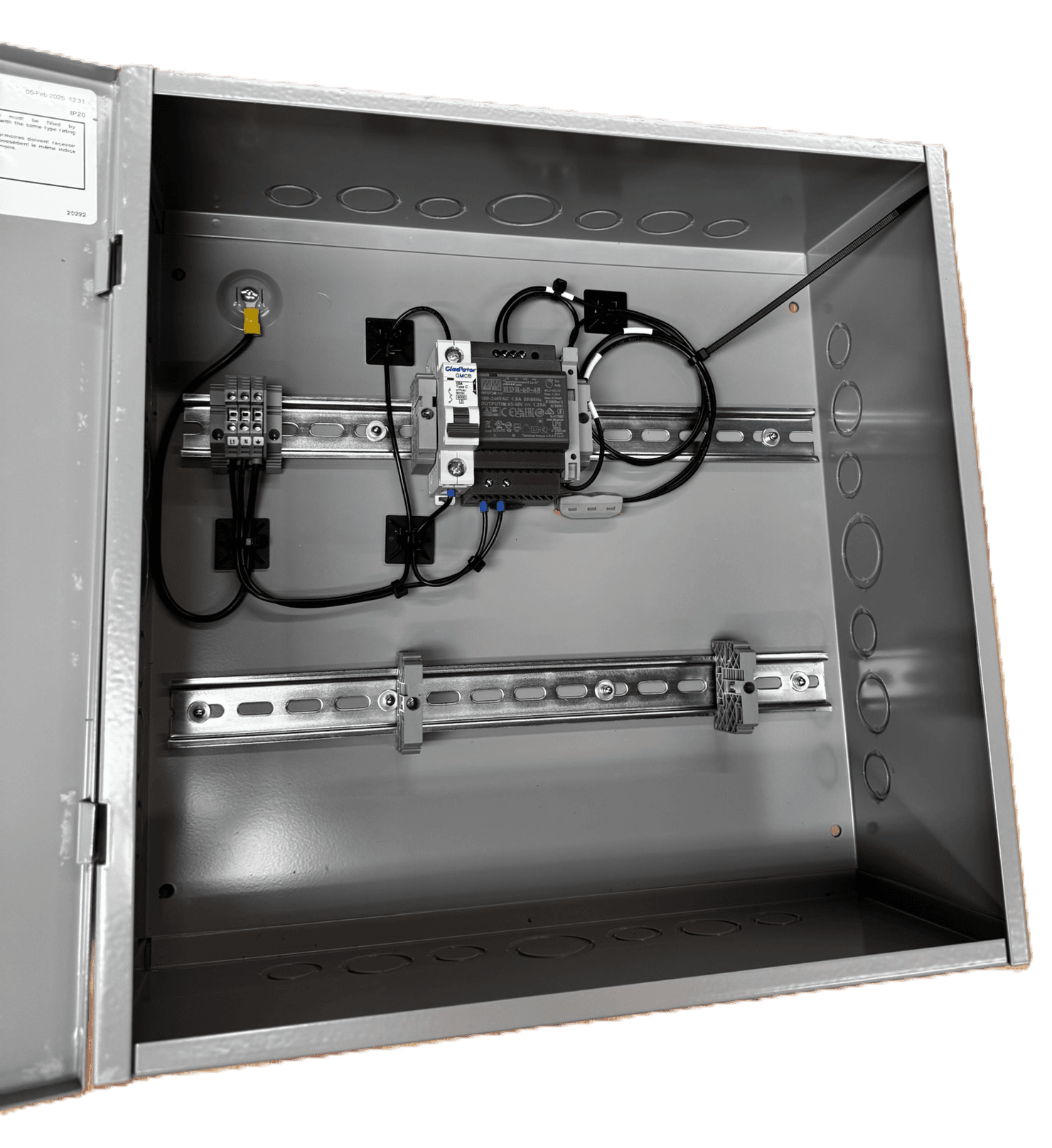

CTRL-ACE / NX-ACP Series
Automation Enclosures
Pre-engineered UL 508A automation control panels and enclosures with DIN rail, industrial power supply, circuit protection, and terminal blocks — ready for your automation controller.
Key Features
- UL 508A listed industrial control panel
- Steel NEMA 1 enclosure with hinged door and knockouts
- Standard 35mm DIN rail mounting brackets
- Industrial DC power supply (24V or 48V, 60W or 120W options)
- Supplementary protector for circuit protection and power disconnect
- Numbered terminal blocks, pre-wired with grounding point
- Optional Pharos LPC controller integration (NX-ACP-LPC)
- Multiple enclosure sizes: 12×12×6 or 16×16×6 inches
Technical Specifications
| Specification | Details |
|---|---|
| Enclosure | NEMA 1, 16-gauge galvanized steel, ANSI 61 gray powder coat |
| Sizes | 16×16×6 in or 12×12×6 in with 4 mounting through holes |
| Door | Hinged with ¼ turn latch or padlock hasp |
| Power Supply Input | 120VAC (85–264VAC), 50/60Hz |
| DC Output | 24VDC or 48VDC, 60W or 120W |
| Circuit Breaker | 15A, 277/120VAC, 1-pole, B curve, 6kA |
| Terminal Blocks | 24–10 AWG, 30A, 600V rated |
| DIN Rail | 2x 12" length, 35mm, 7.5mm height plated steel |
| Operating Temp | 0°C to 50°C |
| Certifications | UL508A, cUL, CE, RoHS |
Ordering Information
CTRL-ACE Series: CTRL-ACE-NEMA1-[SIZE]-[VOLTAGE]-[POWER] SIZE: 161606 | 121206 VOLTAGE: 24V | 48V POWER: 60W | 120W NX-ACP Series: NX-ACP-120 — 120VAC input NX-ACP-277 — 277VAC input NX-ACP-LPC — with Pharos LPC controller Example: CTRL-ACE-NEMA1-161606-48V-120W
Typical Applications
- Pharos LPC lighting control processor installation
- Building automation controller mounting
- HVAC integration panel
- Any application needing a pre-built enclosure with DIN rail, PSU, and terminal blocks
Downloads
Get a Quote
Contact us for pricing and lead times on Automation Enclosures.
Request a QuoteFind a RepWhy Nuvospec
- Skip the panel building — pre-wired DIN rail + PSU + circuit breaker already installed
- Multiple voltage and wattage options match your controller's requirements
- Pharos LPC option (NX-ACP-LPC) = turnkey system enclosure
- 277V input option available for commercial installations
