CTRL-DMX-SCENE-KIT Series
DMX Scene Controllers
Complete DMX lighting control kits from simple 70-scene touchscreen wall stations to full Pharos-based dynamic color-changing systems with astronomical scheduling and app control.
Key Features
- Complete kits — controller(s) + power supply, ready to install
- Standard kits: 70 programmable scene presets on one DMX512 universe
- Dynamic kits: Pharos Expert controller with animated effects and color-changing

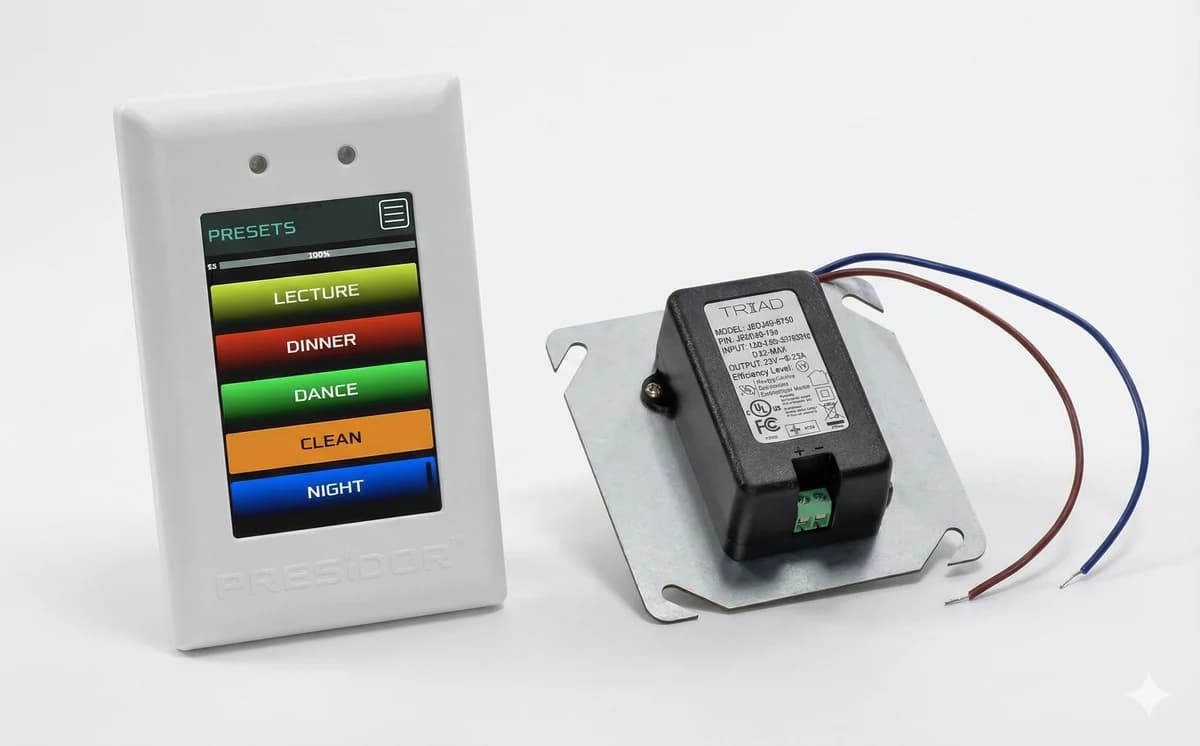

- Intuitive touchscreen interfaces (wall station or 5"/8" PoE touchscreen)
- Standard kits: ultra-low power (<1W), fits single-gang box
- Dynamic kits: built-in astronomical time clock and mobile app control
- Basic or Plus configurations (1 or 4 DMX universes)
- Optional remote controller for multi-location operation
- Contractor-friendly — installs like a light switch
Technical Specifications
| Specification | Details |
|---|---|
| Standard Controller | PWS-70P — 70 scenes, DMX512, single-gang |
| Dynamic Controller | Pharos XPC Expert — sACN, Art-Net, DMX, DALI |
| Touchscreen (Standard) | Built-in touchscreen on wall station |
| Touchscreen (Dynamic) | 5" (800x480) or 8" (1024x768) PoE capacitive |
| DMX Universes | Basic: 1 (512 ch) | Plus: 4 (2048 ch) |
| Max Devices | Basic: 30 | Plus (4 runs): 120 |
| Max Cable Length | 1,000 ft (DMX) / 300 ft (CAT6) |
| Power (Standard) | 24VDC, <1W operation, <0.25W standby |
| Operating Temp | 0°C to 40°C |
| Certifications | UL, cUL, FCC Part 15 Class B, RoHS |
Ordering Information
Standard Kits: CTRL-DMX-SCENE-KIT-BASIC — 1 controller + 24VDC PSU CTRL-DMX-SCENE-KIT-BASIC-WITHREMOTE-KIT — 2 controllers + PSU CTRL-DMX-SCENE-KIT-BASIC-PLUS-SINGLE — 1 controller + DMX Splitter Panel CTRL-DMX-SCENE-KIT-BASIC-PLUS-WITHREMOTE — 2 controllers + Splitter Dynamic Kits: CTRL-DMX-SCENE-KIT-DYNAMIC-BASIC — Pharos + 5" touchscreen CTRL-DMX-SCENE-KIT-DYNAMIC-PLUS — 4 universe, 5" touchscreen 8" and remote variants also available Contact factory for full configuration options.
Typical Applications
- Conference rooms and boardrooms
- Restaurant and bar scene control
- Hotel lobbies, conference centers, ballrooms
- Retail store accent and feature lighting
- Entertainment venues and performance spaces
- Architectural feature lighting
- Any application needing scene recall without complex programming
Downloads
Get a Quote
Contact us for pricing and lead times on DMX Scene Controllers.
Request a QuoteFind a RepWhy Nuvospec
- No commissioning software needed — scenes programmed right on the wall station
- Kit format — everything included and matched, no compatibility guessing
- Elegant wall station fits standard gang box, looks architectural
- Dynamic kits add Pharos industry-leading DMX control with 5-year warranty
- PoE touchscreens — one cable to the wall station, no separate power run
