PNL-GTWY Series

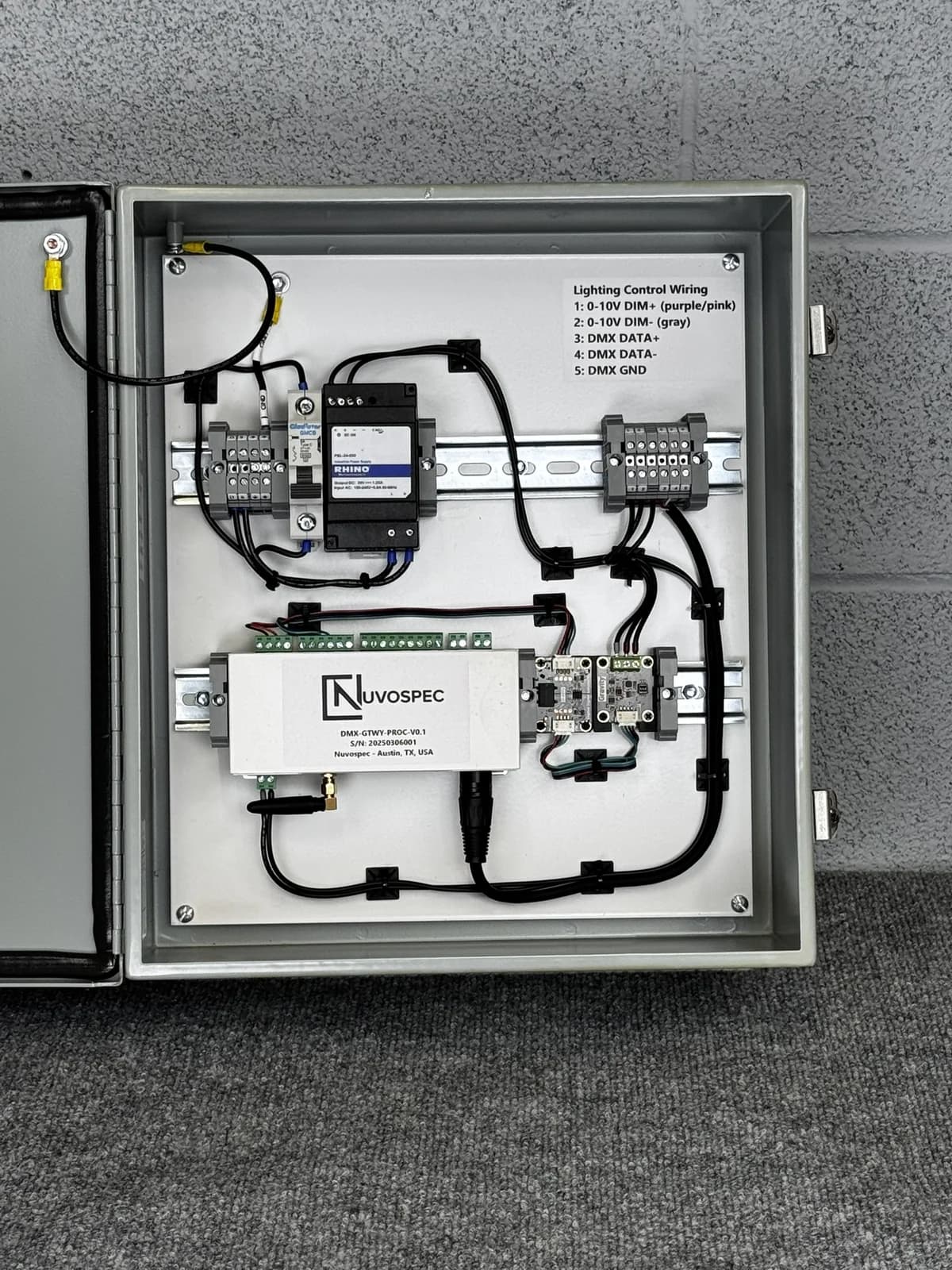

Integration Gateway Panels
Pre-assembled 0-10V integration gateway panels — convert standard 0-10V analog dimming signals to DMX512, serial port, SOMFY shade control, or 3-stage contact closure outputs.
Key Features
- 0-10V to DMX Gateway: converts analog dimming signals to DMX512 output
- 0-10V to DMX Mapped Gateway: 4 inputs individually mapped to 4 DMX outputs
- 0-10V to Serial Port Gateway: bridges dimming signals to AV/serial systems
- 0-10V to SOMFY Shades Gateway: controls SOMFY motorized shades (Up, Down, Hold)
- 0-10V to 3-Stage Contact Closure: relay outputs for shade motor control
- DIN rail mounted components in NEMA 1 steel enclosure
- 120VAC input with integrated power supply
- Pre-assembled and factory tested — plug and play installation
Technical Specifications
| Specification | Details |
|---|---|
| Input Signal | 0-10VDC analog (sink or source) |
| DMX Output | 1x DMX512-A universe (DMX gateway models) |
| Input Voltage | 120VAC |
| Enclosure | NEMA 1 steel enclosure |
| Mounting | DIN rail components, surface mount enclosure |
| Operating Temp | 0°C to +50°C |
| Certifications | UL Listed |
Ordering Information
PNL-GTWY-010V-DMXSCN-DMX1U-120V-NEMA1 — 0-10V to DMX Gateway, Scene Selector PNL-GTWY-010V04-DMXMAP-DMX1U-120V-NEMA1 — 0-10V to DMX Gateway, 4-Input Mapped PNL-GTWY-010V-AVSER-120V-NEMA1 — 0-10V to Serial Port Gateway PNL-GTWY-010V-SMFYRST-120V-NEMA1 — 0-10V to SOMFY Shades Gateway PNL-GTWY-010V-3STGCC-120V-NEMA1 — 0-10V to 3-Stage Contact Closure Interface Contact sales@nuvospec.com or (512) 615-9002 for pricing.
Typical Applications
- Retrofitting DMX fixtures into spaces with existing 0-10V controls
- Building automation integration (BAS outputs 0-10V → DMX fixtures)
- Motorized shade integration via 0-10V dimming signals
- AV system integration via serial port bridging
- Conference rooms, restaurants, retail environments
