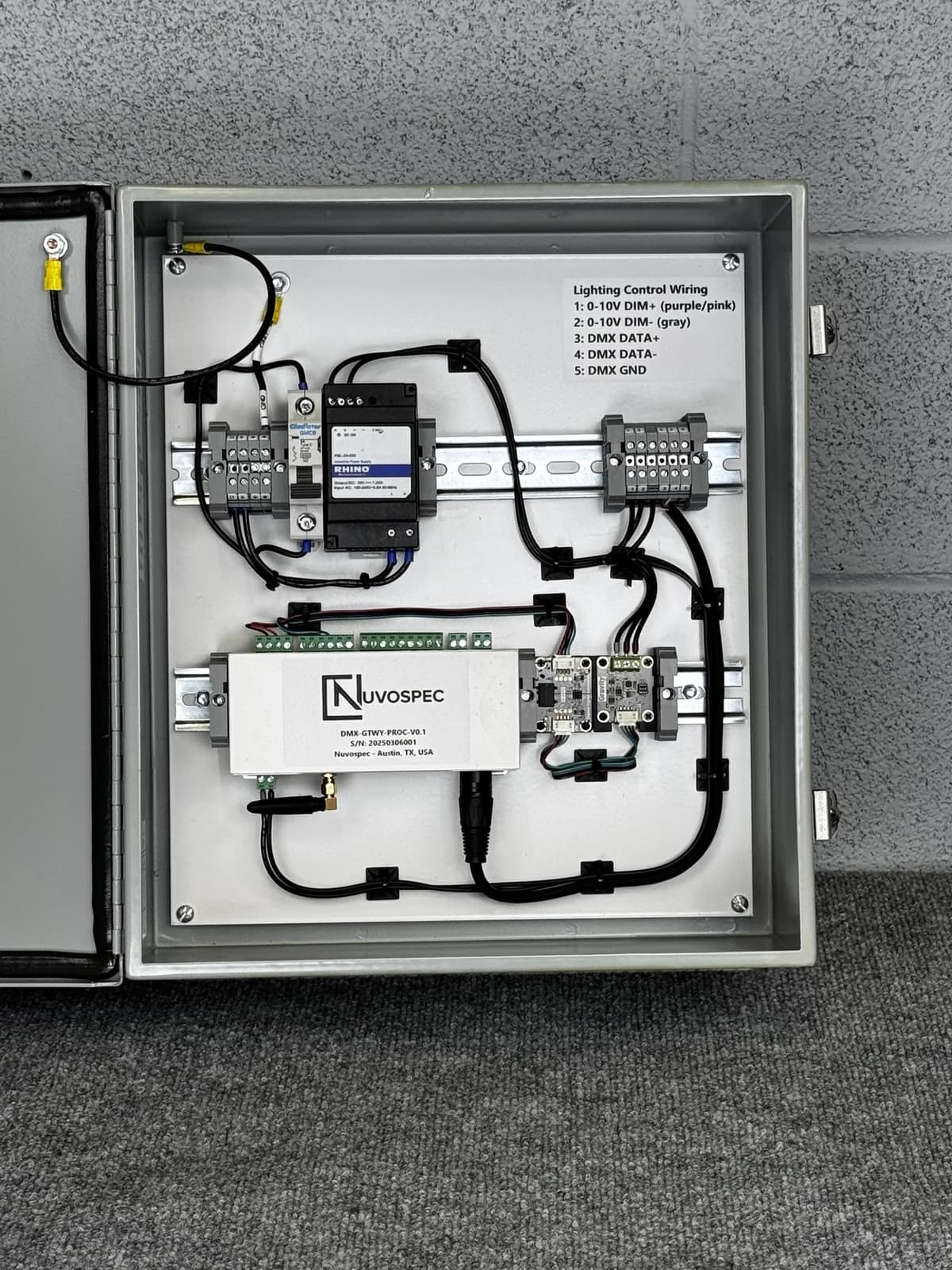

DMX Gateway Panel

DMX Gateway

The DMX Scene Gateway is a standalone, DIN-rail-mountable device that converts 0–10V analog lighting control signals into up to 10 configurable DMX lighting scenes. Simple browser-based setup via onboard Wi-Fi allows fast mapping, backup, and field updates without any proprietary software. Designed for robust integration in commercial and architectural lighting environments.

Product Features

  • Accepts standard 0–10V lighting control input (source or sink)

  • Outputs one full DMX512-A universe (up to 512 channels)

  • 10 user-defined scene presets mapped by voltage

  • Adjustable scene-to-scene fade rate

  • Embedded Wi-Fi with captive portal for local configuration—no internet required

  • Factory reset, backup/restore, and test output functions

  • DIN rail enclosure and labeled terminal blocks for easy installation

Product Specifications

  • Input Voltage (Power): 120 VAC (±10%)

  • Analog Input: 0–10V, source/sink compatible

  • DMX Output: 1x DMX512-A universe, screw terminals

  • Max Scenes: 10

  • Fade Rate: Adjustable per scene

  • Config Interface: Wireless via web browser

  • Authentication: Unique default password, forced change

  • Backup/Restore: Download/upload config file

  • Test Functions: “All on” & “All off” DMX test buttons

  • Indicators: Power/status & input signal LEDs

  • Mounting: surface mount via through holes in rear of panel

  • Operating Temp: 0°C to +50°C

  • Input Protection: ESD & analog filtering

  • Dimensions (typical): 16x16x6 inches

DMX Gateway Spec sheet
