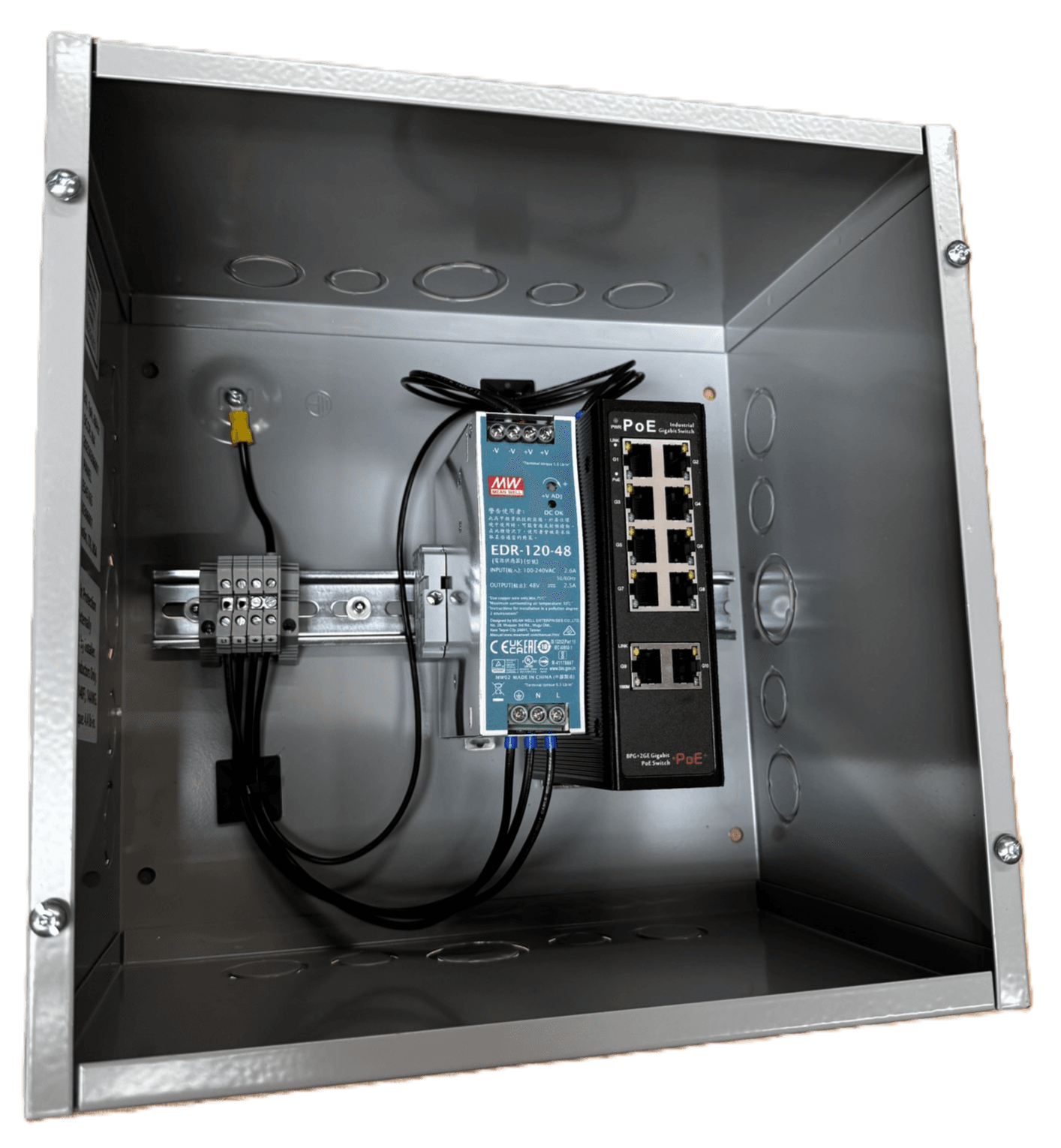

ECO-POE Series
PoE Switch Panels
Pre-assembled contractor-friendly PoE switch panel with 4 or 8 ports, 120W capacity, industrial power supply, NEMA 1 or NEMA 3R — ideal for powering IP lighting controls and building automation devices.
Key Features
- Plug & play, pre-assembled ethernet network solution
- 10/100M industrial PoE switch, up to 120W total device load
- 4 or 8 ports supporting IEEE 802.3af/at (up to 30W per port)
- Includes 120W industrial 48VDC power supply
- 3 terminal blocks for AC supply connection
- Steel NEMA 1 or NEMA 3R enclosure
- Operating temp: -40°F to +131°F
- All components UL listed
- Add-on options: fiber uplink, integrated router, BACnet gateway, NTP server
Technical Specifications
| Specification | Details |
|---|---|
| Switch Ports | 4 or 8 x 10/100Base-TX PoE + 2 x Data-only RJ45 |
| PoE Standard | IEEE 802.3af/at — 30W max per port |
| Total PoE Budget | 120W (with included PSU) |
| Power Supply | 48VDC, 120W, 120–240VAC input |
| Enclosure | 12 x 12 x 6 in, NEMA 1 or NEMA 3R |
| Material | Galvanized steel, ANSI 61 gray powder coat |
| Operating Temp | -40°C to +75°C | 5–90% RH |
| Compliance | FCC Part 15 Class B, RoHS |
| Certifications | All components UL listed |
Ordering Information
ECO-POE-[PORTS]-[NEMA]-[VOLTAGE] PORTS: 04POE | 08POE NEMA: NEMA1 | NEMA3R VOLTAGE: 120 Example: ECO-POE-08POE-NEMA3R-120
Typical Applications
- Powering IP lighting touchscreens (Pharos, DMX gateways)
- Access control card readers and door controllers
- IP cameras (4 cameras max on 4-port @ 30W each)
- Building automation IoT sensors and gateways
- Small office/retail network infrastructure
Downloads
Get a Quote
Contact us for pricing and lead times on PoE Switch Panels.
Request a QuoteFind a RepWhy Nuvospec
- All-in-one: switch + power supply + enclosure pre-assembled — saves hours
- Outdoor rated NEMA 3R option for rooftop or mechanical room installs
- Wide temp range: -40°F works in unconditioned spaces
- UL listed components pass inspections without drama
